Developer Guide

Acknowledgements

• docs.oracle.com Java time References
• Java Streams Reference
• Raoul-Gabriel Urma, Mario Fusco, Alan Mycroft, Modern Java in Action: Lambdas, streams, functional and reactive programming 2nd Edition, Manning, 2018.
• Team members: Wan Yin, Hanna, Yeu Chai and Sze Chun

Design

JustBook Command Line App leverages on the help of a total nine Java classes, viz. JustBook, Bookings, Command, AddCommand, EditCommand, DeleteCommand, LoadCommand, SaveCommand and HelpCommand created by the Team. It makes optimal use of Java Stream and the latest java time APIs, e.g. LocalDateTime and LocalDate, among others, together with a judicious choice of data structures, to allow a single user good at the keyboard to make and register bookings / appointments online fast:

• JustBook class is the main app controller class.
• Each user booking entry is stored in an Arraylist<Bookings> data structure (which will be sorted before each show listing processes - this is to allow for editing or deleting direct using the onscreen listings).
• The Bookings class will capture the user booking description, the scheduled start localDateTime and end localDateTime data belonging to a specific booking entry.
• Another data structure chosen for efficient search/retrieval - HashMap<LocalDate, LocalDate> - is used to store a blocklist consisting of blocking periods where the user will not be able to make any bookings.
• The rest of the classes are essentially helper classes containing the commands entrails and refactorings - to do the additions (into the online database), local backup file loading, writing and appending of new entrée, as well as the displaying of scheduled listings on various basis (e.g. listing weekends, specific dates, entire database bookings).
• The program will also handle appointment modifications, deletions, saves and undeletes (the undoings of all online modifications done up to the current moment).

Implementation

Show weekends / we feature

Highlights:

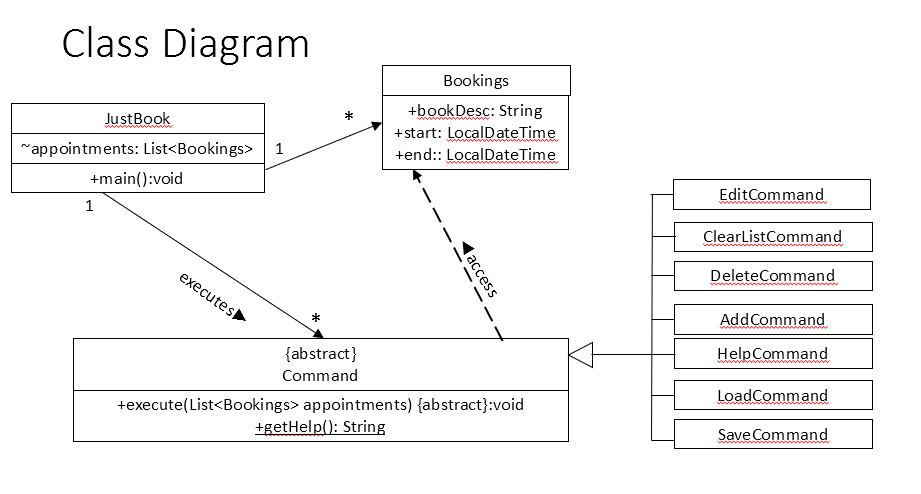

Fig 1. - JustBook Class Diagram Sample

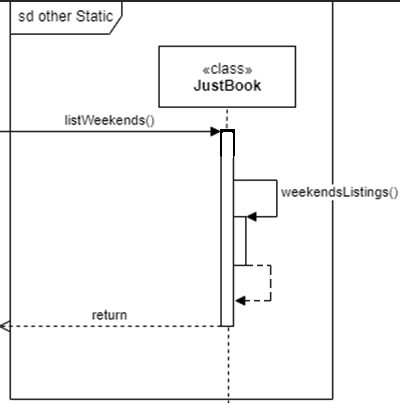

Fig 2. - Sequence Diagram Illustration

Fig 3. - Sequence Diagram Illustration

The show weekends or show we mechanism is facilitated by two JustBook Class-level helper methods, namely, listWeekends() and weekendListings().

The plan of this feature is to display quickly all the weekends and their booking listings of the current month, if any, to the console, arranged in chronological order - starting from the weekend nearest to the point of date of entry of the user, when he or she enters the CLI command.

The first method listWeekends() will accomplish the bulk of the above work while working in synchronicity with the second helper method weekendListings(), which mainly formats the display to group all weekend bookings by their respective weekend headers, and searches the online appointment database to extract out only the weekend entries to display for the month.

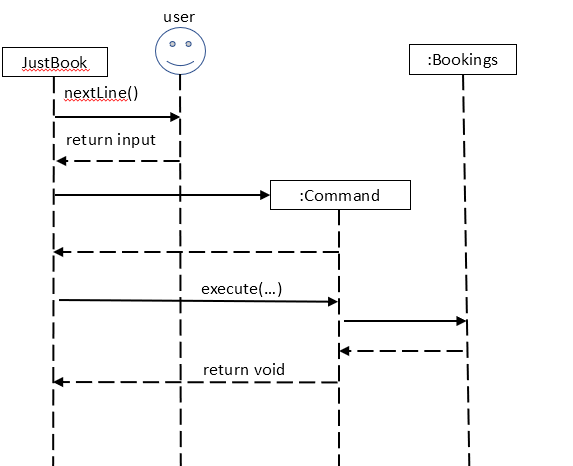

Fig 3. - Sequence Diagram for User Input

Design considerations:

Considerations in the design of both methods have been specially given for the optimization of both operations in terms of time and space complexity,

• in terms of unnecessary non-weekend database searches skipped
  • once a valid weekend date has been processed proper - until the next valid weekend processing begins,
• and the deployment of an EnumSet (with the two DayOfWeek weekends values)
  • to afford quick comparison operations during the sifting out of the weekend dates, from the generated stream of dates, bracketed by the current day date to the end of the month.

We tried to adhere to a Command design pattern as much as possible. The design pattern was implemented at the later stages of the sprints, since we aimed to develop a MVP as fast as possible (Scalability was less of a concern), which did not have optimal design at the start. Afterwards, in the later sprints, more features were refactored into the Command design pattern.

In terms of design principles, for the refactored Command classes, they have adhered to Single Responsibility Principle rather well. This allows strong cohesion with minimal coupling for those classes. However, certain principles such as Open-Closed Principle was not adhered as much at the start, due the priority of developing an MVP product first. Thus, certain sections may not be closed for modifications, such as one of the identified areas (the JustBook class) but are seen in the refactored sections. We have attempted to keep the code KISS as much as possible, whereby the program flow is rather simplistic. Furthermore, variable names and functions method names are also rather intuitive, improving the readability for the code reader.

In a nutshell, the design patterns and principles were not the strongest focus at the start, but as the product became more developed, it began to be more object oriented in its design. With this approach, the earlier sprints allowed more features to be developing while keeping in check the complexity (such as coupling) of the application through refactoring.

Product scope

Target user profile:

• has a need to manage a number of fast bookings
• prefer desktop apps vs other types
• can type fast
• prefers using the keyboard over mouse interactions
• is reasonably comfortable using CLI apps

Value proposition: manage contacts faster than a typical mouse/GUI driven app

Target user profile

Target User: John

Age: 18 (typical)

Occupation: Student

Education: Currently in Poly or JC

Commitments: CCAs, recreational activities, Studies

Traits: Is technologically literate, active in activities, comfortable typing commands

Our target user is a Student that is currently schooling. As an active student, the Target User has multiple activities that may be hard to keep track of. With the scheduler, John will be able to plan and organize multiple appointments at the same time.

Value proposition

JustBook provides a user-friendly, consistent and error-free interface, as well as helpful message feedback or alerts to users, throughout the app use. The scheduler can be customized into working on the basis of various time durations (6 months, monthly, weekly etc.). Using the CLI-type interface, the user will be able to edit multiple appointments easily with minimal commands / single commands.

Users are able to make, check, delete, view, change, and source in real-time for available slots for appointments using this application. This application will display a range of time slots available for users to choose from, may also list available dates and unavailable dates when the User is trying to schedule an appointment. The User can also choose to work on a 6-calendar-months view / basis (coming feature), or per month, per week, down to a day’s view / basis.

Possible enhancements include appointment data printout, a file backup in the background to act as a redundancy measure for unforeseen disruption, alerts for the User if so scheduled, etc.

Our Value Proposition is that our scheduler provides, throughout the app use, a consistent, user-friendly and error-free interface, assisting message feedback or alerts and a capability to suggest time slots to the user, in addition to the time slots available (coming feature). The scheduler can be customized to work on the basis of various time durations (monthly, weekly, daily etc.). Using the CLI-type interface, the user will be able to edit multiple appointments easily with minimal commands / single commands.

User Stories

Version	As a …	I want to …	So that I can …
v1.0	new user	see help usage instructions	refer to them when I forget how to use the application
v1.0	regular user	I can add in a booking entry in one line	make an entry and have it stored online fast
v1.0	a quick user	I can edit a booking entry description	modify an entry description easily at will
v1.0	date planner	I find a booking item by date	locate a to-do without having to go through the entire list
v1.0	efficient student	I can order all my tasks and appointment by their due date	order all my tasks and appointment by their due date
v1.0	systematic student	I can see my list upfront	know what tasks I have clear for the day
v1.0	active student	I can view the block of outstanding schedules for the month displayed (coming feature)	check if I can add further bookings for that month
v1.0	fast-moving student	I can view the the day’s block of remaining schedules	remind myself of the schedules done and which ones left to attend to that day
v1.0	studious student	I can input a blocking period into the database	so that I’m unable to book within that critical period
v2.0	student	I can save or load at start up my appointments and schedule	not need to re-create them everytime I log in
v2.0	structured student	I can see my appointments arranged together and tasks arranged together	have a clear distinct view of appointments and tasks
v2.0	student who always does late minute work	I want to see tasks or appointments going to be due being highlighted to me in ordered deadline date and time	can meet the deadline (coming feature)
v2.0	social student	I can view the block of weekend outstanding schedules for the entire current month displayed	check if I can add further bookings for the weekends
v2.0	busy student	I can quit the application immediately with an automatic save	move on to my other activities quickly

Non-Functional Requirements

1. Users are able to run the application as long as Java11 is installed
2. The application has been designed to handle up to 100’s of user appointments optimally without affecting its performance.
3. The application should preferably be executable on Windows OS or compatible software-emulated terminal.
4. User-friendly features incorporated in helpful messages feedback and diagnostic prompts (more to come)

JustBook’s Process Workflow

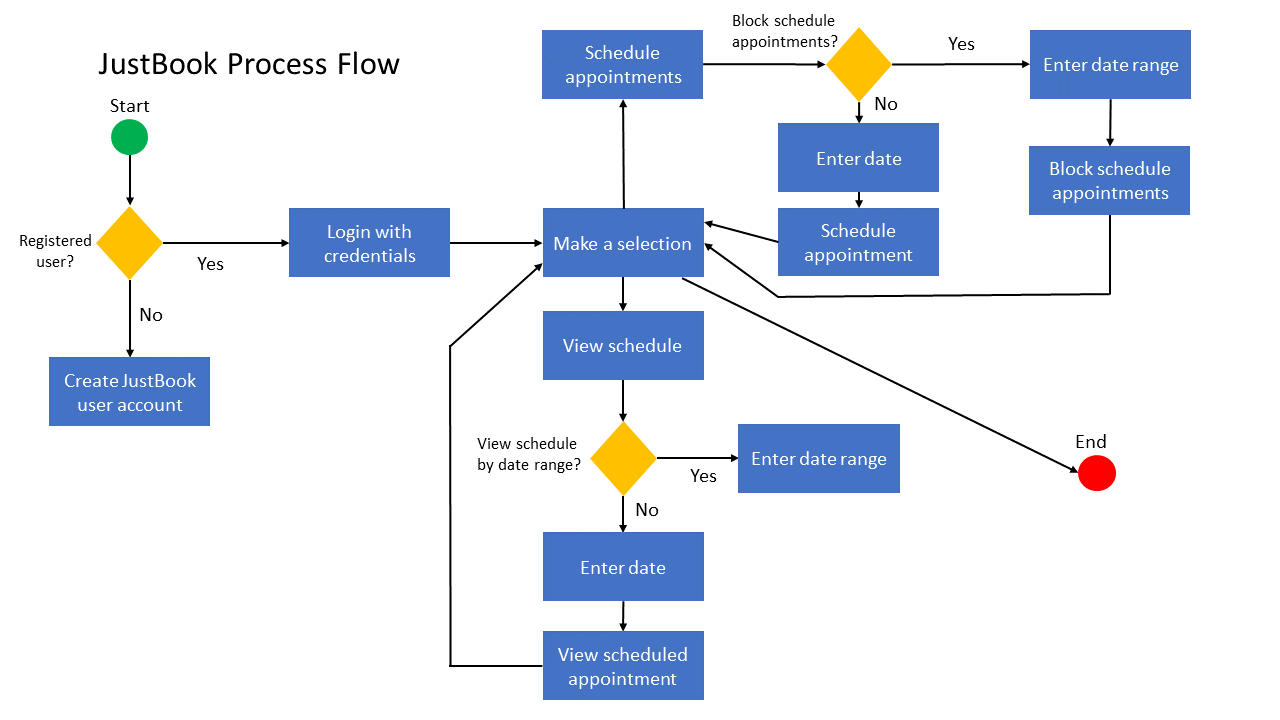

Fig 4. - JustBook App Activity Diagram

The diagram illustrates the possible branches leading to various outcomes based on the user’s decisions.

The model illustrates a possible regular process flow of a user starting up the JustBook application with an upcoming feature. The user launches the application and is prompted to log in: if the user does not have an account within the application, the user will be prompted to create an account and redirected to log in again (coming feature). Following that, the user is presented with options on utilising the application as illustrated in the diagram. Current version has the user enter a chosen username instead.

Glossary

• Mainstream OS - Windows, Linux, Unix, OS-X
• JustBook App - A single-user command line app for making and storing student bookings online
• CLI - Command Line Interface
• booking - A typed entry consisting of booking text description, a start DateTime and end DateTime
• ISO (time standard) - For Java time Standards, it follows this format: “yyyy-MM-dd HH:mm”
• DateTime - Java LocalDateTime implemented with format as “yyy-M-d HH:mm”, using a 24 hr format

Instructions for manual testing

• Ensure Java jdk 11 is installed
• Download the justbook.jar file from Release v2.0
• Obtain a sample test file, e.g. justbook.txt with saved entries (correctly formatted)
• Copy the sample test file to a local folder named data
• start up the app, eg. java -jar justbook.jar via a windows cmd or compatible terminal
• Type in a username of your choice
• Type show --all or show all to check the display list tallies with those saved in the justbook.txt file

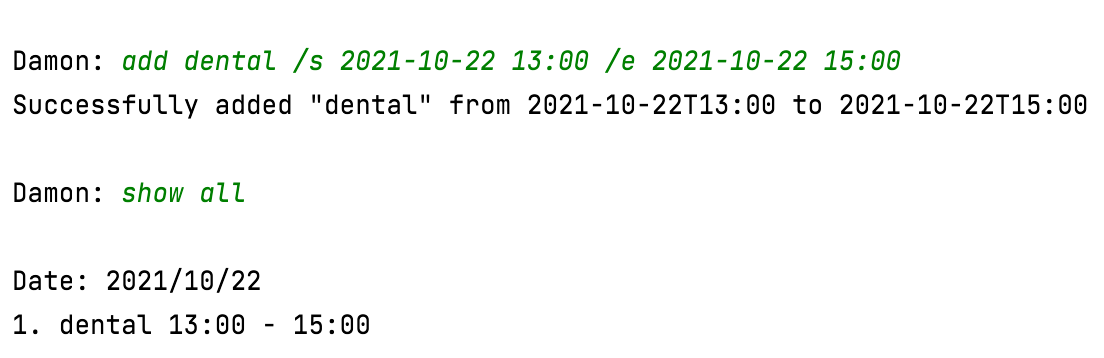

• Sample instruction:

Instructions for IO/Regression testing

1. Navigate to text-ui-test folder
2. Depending on your (User’s) OS, if Windows, run runtestmain.bat, if Linux or macOS, navigate to the test folders and run runtest.sh
3. The CMD window or shell output will display if the comparison between the expected output and actual output are the same
4. If there are any differences, they will be displayed at the CMD or shell window as well.
5. The regression test would have passed if no differences are found.
